How Do Solar Panels Work?
A Little Introduction About Me :
Hello, I'm Mohamed Amine Balounsi, an engineer with a strong interest in renewable energy and the founder of Ta9ati. Over the years, I've noticed that a lot of people are interested in solar energy but are confused by the technical terms, kilowatt-hours, inverters, net metering, etc., which can seem like a foreign language.
I enjoy putting it simply because of this. Let's embark on a journey together today to learn more about how solar panels operate. You will discover by the end of this article that science is quite amazing and much simpler than it first appears.
Sunlight as Energy
Consider how hot an automobile's hood gets on a bright day.
That is the energy that sunlight carries. Like ingenious catchers, solar panels capture a portion of that energy and convert it into electrical power that you can use at home.

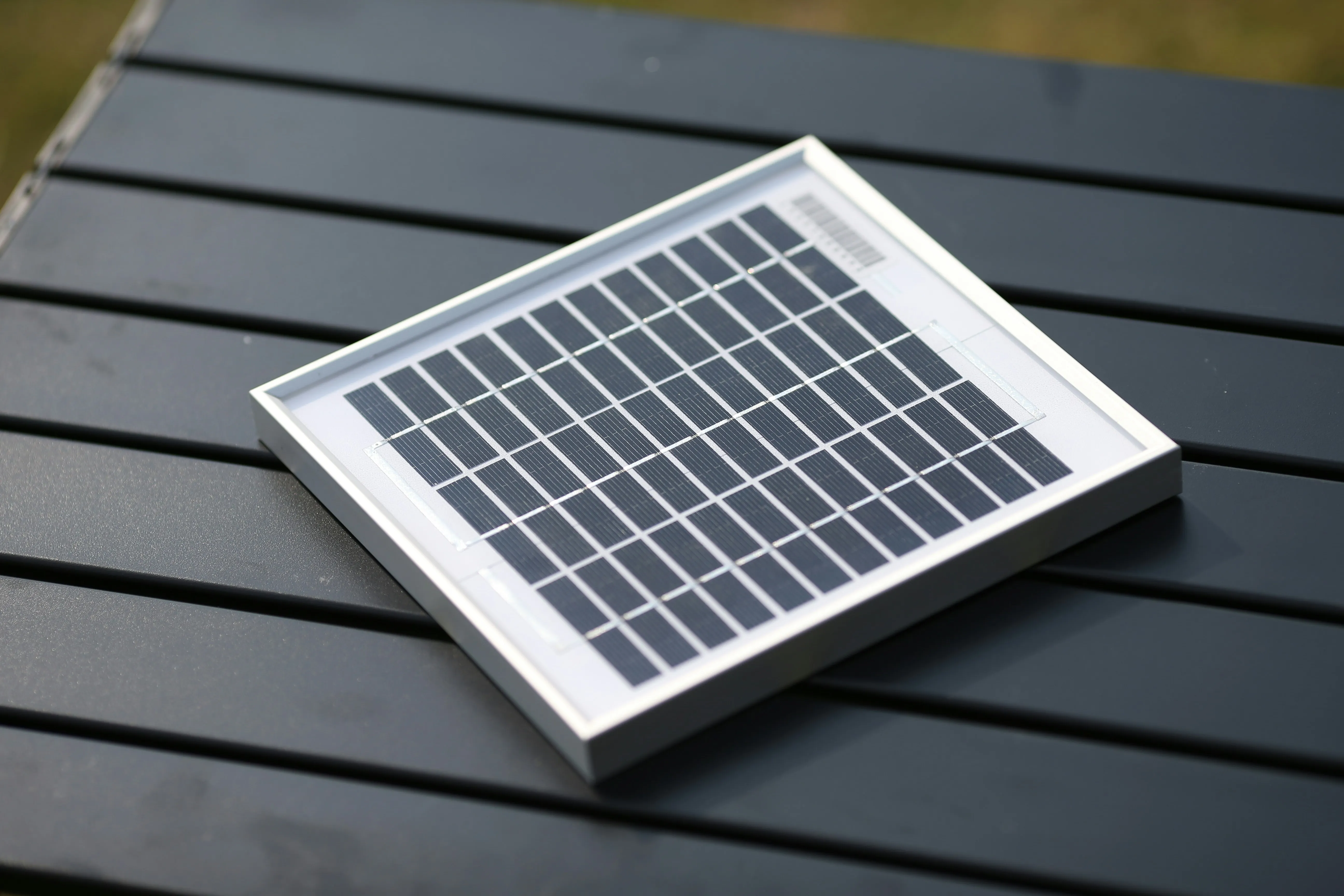

Numerous tiny solar cells make up each solar panel. Silicon, the same substance found in computer chips, is typically used to make these.
Why silicon? Due to its special ability to release electrons, which are tiny charged particles, when light strikes it. And electricity is the result of moving electrons.
The Simple Analogy: A Bakery š
Here's a straightforward way of thinking about it: Consider a bakery.
- Sunlight is like clients entering.
- They treat each photon, or particle of light, as though it were a coin.
- Electrons are like bakers in the bakery, waiting for orders.
- Electrons become excited and move out to deliver bread when photons "pay" with their energy.
- The solar cell's integrated "turnstile" ensures that all of the electrons travel in the same direction, producing a constant flow of electricity.
No customers, no bread. With sunshine? Business is booming.
A Peek Inside a Solar Cell

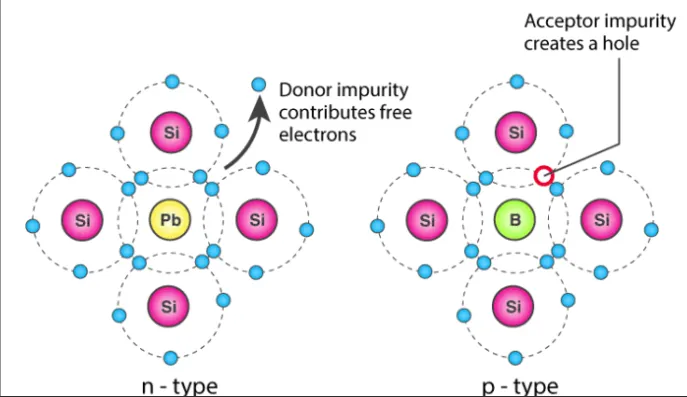

This is the version that is a little more complicated but still straightforward. Two silicon layers are used to construct a solar cell:
- N-type silicon (with extra electrons).
- P-type silicon (with spaces called āholesā that electrons want to fill).
These two combine to form a P-N junction, which is essentially an invisible electric field. An electron is released at this junction when a photon from the sun strikes it. The field pushes that electron in one direction, and wires record its path. Electricity is produced when you multiply this by millions of electrons per second.

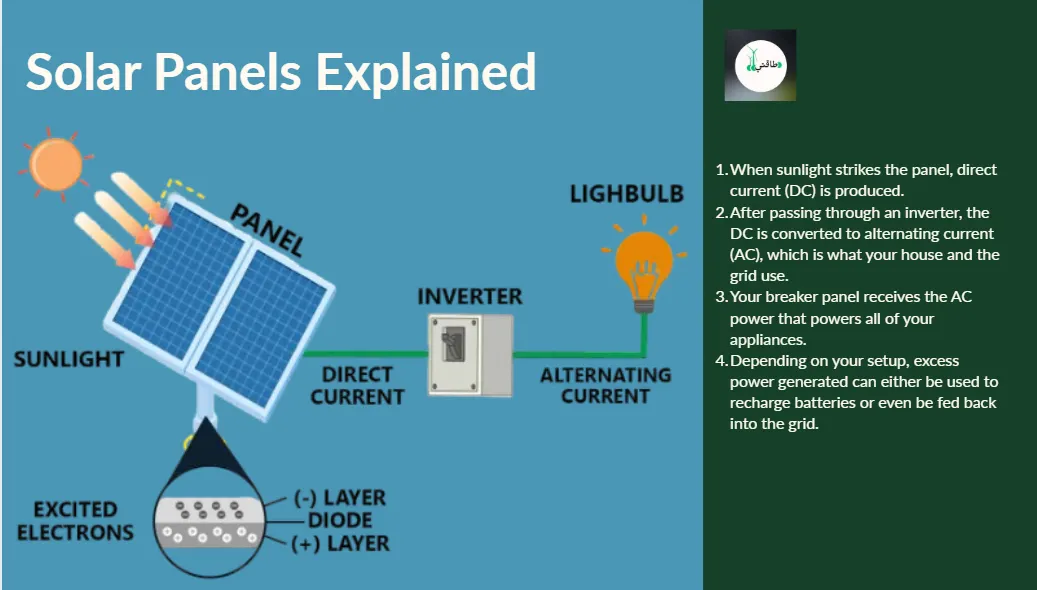

From Panel to Plug
However, your refrigerator or phone charger must be modified in order to use the electricity directly from a panel. This is the route:
- When sunlight strikes the panel, direct current (DC) is produced.
- After passing through an inverter, the DC is converted to alternating current (AC), which is what your house and the grid use.
- Your breaker panel receives the AC power that powers all of your appliances.
- Depending on your setup, excess power generated can either be used to recharge batteries or even be fed back into the grid.
What Affects Output?
Not all sunshine is created equal. The amount of electricity generated by panels is influenced by several factors:
- Angle and intensity of sunlight: Midday panels facing the sun generate more than those facing the sun at dawn or dusk.
- Temperature: Surprisingly, panels prefer colder climates. Extreme heat reduces efficiency a little.
- Shade and dirt: Even a small amount of tree branch shade can lower production. Happier panels are those that are clean.
- Efficiency rating: Some state-of-the-art panels convert up to 20% of sunlight into useful power.

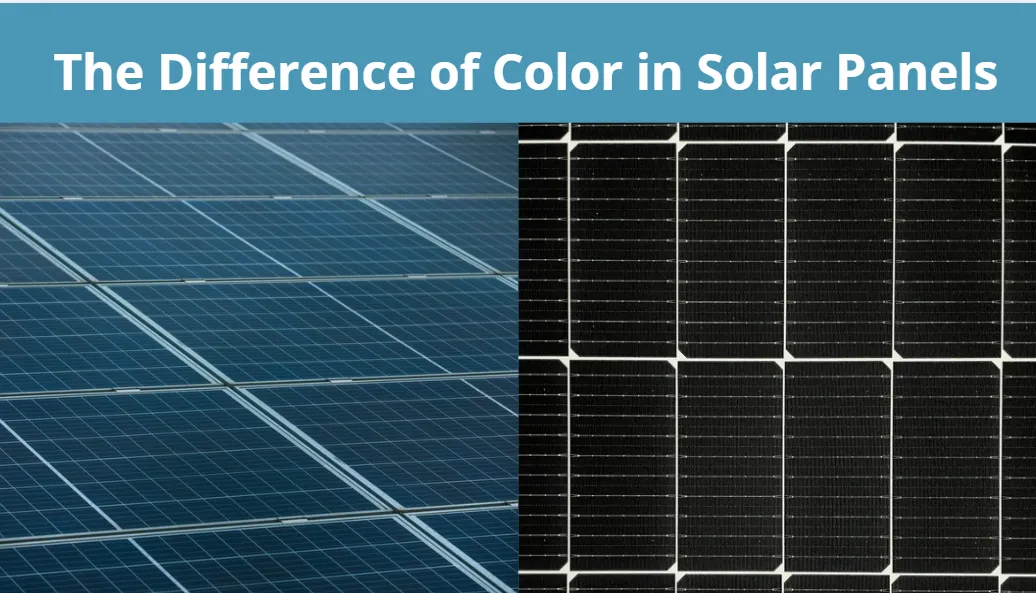

Why Do Panels Look Blue/Black?
That rich hue serves more purposes than just fashion.
It combines unique anti-reflective coatings with silicon's inherent appearance.
You see those thin silver lines?
These are microscopic metal contacts that gather electrons and direct them toward wires.
Different Panel Types (Quick Tour)

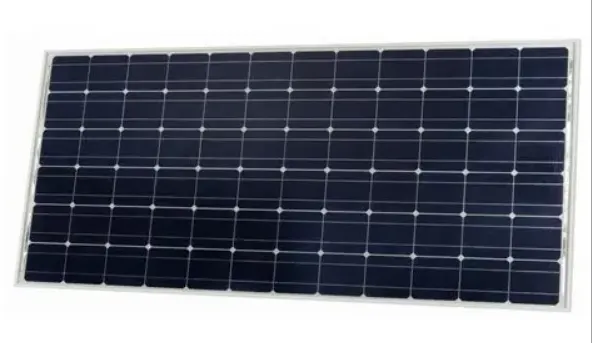

Monocrystalline: excellent for smaller rooftops, dark black, and more efficient.

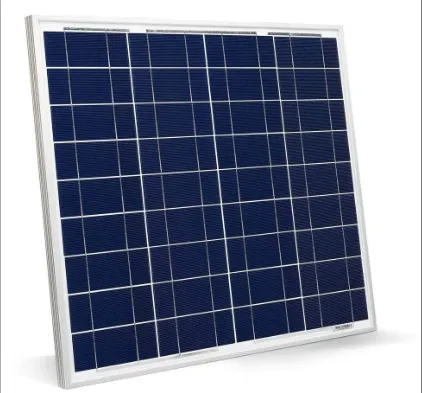

Bluish, slightly less efficient, and frequently less expensive, polycrystalline is.

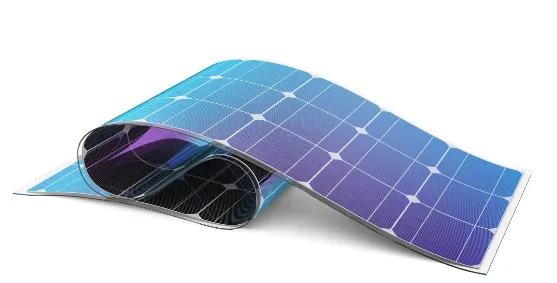

Thin-film: Used for specific applications, this material is lightweight and flexible but has a lower efficiency.
A Water Analogy for Electricity š°
Consider current to be the flow of water and voltage to be the pressure of water.
A constant one-way flow (DC) is produced by solar panels.
But the water that powers your house pulses back and forth (AC). Similar to a clever pump, the inverter transforms one kind of flow into another to ensure smooth operation.

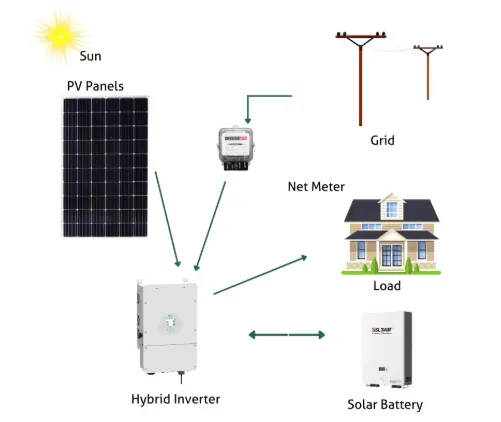

With or Without Batteries?

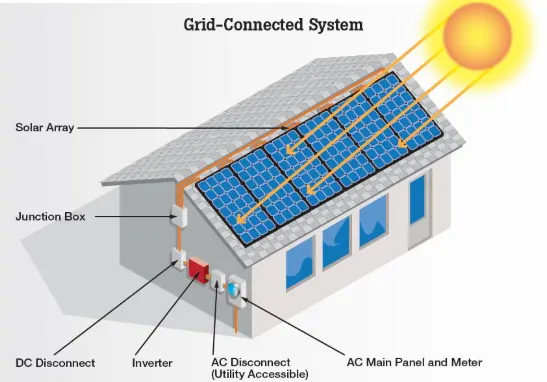

Grid-tied (no batteries): You use the utility grid at night, and excess power returns to it.
Hybrid/off-grid (with batteries): Additional power is provided by a battery that you can use in the event of a blackout or when the sun isn't shining.
Both systems work: batteries add independence but also cost.
Why This Matters
The secret is that there are no moving parts involved in any of this. Just a little physics, silicon, and sunlight.
Because of this, panels require little maintenance and last for more than 25 years. After installation, they continuously produce clean electricity in silence.
For you, that means:
- Lower energy bills over time.
- Protection against rising electricity costs.
- Contributing to a greener, more sustainable planet.
The Takeaway
How do solar panels operate, then?
In a nutshell:
Electricity is the result of an electric field pushing silicon electrons into motion after they are excited by sunlight.
Easy, strong, and long-lasting.
You will now understand exactly what is happening when you see a rooftop covered in solar panels: sunlight is being converted into the energy that sustains life.
